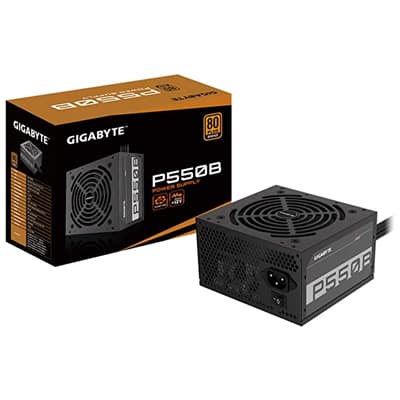

Gigabyte GP P550B PSU 550W
$53.00
Model P550B
Type Intel Form Factor ATX 12V v2.31
PFC Active PFC(>0.9 typical)
Input Voltage 100-240 Vac(full range)
Input Current 8-4 A
Input Frequency 60-50 Hz
Output Capacity 550W
Dimension 150 x 140 x 86 mm
Fan Type 120mm Hydraulic Bearing (HYB) Fan
80 PLUS Bronze
Efficiency 85% at typical load
MTBF >100,000 hours
Cable TypeFlat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 550mm*1
CPU/EPS 4+4 Pin x 1 : 600mm*1
PCI-e 6+2 Pin x 2 : 550mm+150mm*1
SATA x 6 : 500mm+120mm+120mm*2
4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1
